AR10-1.25-UM04

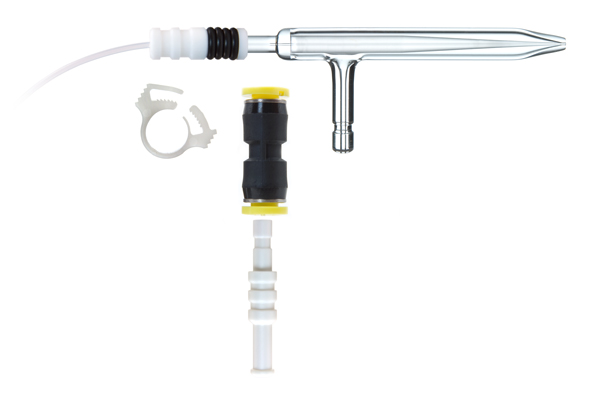

MicroMist U-Series Nebulizer 0.4 mL/min
The MicroMist™ U-Series nebulizer is ideal for low-volume ICP samples. It offers excellent precision with a lower sample uptake rate, making it suitable for applications with limited sample volume or sensitive detection requirements. Industry's tightest tolerances ensure that each nebulizer will perform to the same high standards as the previous one, physical reproducibility within 1%. VitriCone™ Sample Channel is guaranteed uniform from entry point to nebulizer tip and thus resistant to clogging. The U series nebulizer features the EzyLok argon connector. The inert, metal-free DC argon gas fittings, with built-in torque control, ensure reliable, reproducible, and leak-free connections, keeping analyses contaminant-free. Large, soft-walled tubing prevents kinks and fatigue common with rigid capillaries.
Specifications
| Material | Borosilicate glass |
| Physical Reproducibility | High approximately 1% |
| TDS Tolerance | Typically up to 15% |
| Flow Rate | 0.4mL/min |
| Relative Standard Deviation (RSD's) | Low, due to highly accurate construction |
| Sample Arm Connector | Unifit Sample Connector |
| Gas Arm Connector | EzyLok Argon Connector |
| Aqueous Solutions ICP-OES | Yes |
| Aqueous Solutions ICP-MS | Yes |
| Organic Solutions | Yes |
| Limited Volume | Yes |
| Tolerance to Particulates | Typically up to 100μm |
| Requirement | Best Performance, Best Sensitivity |
| Volatile Solvent | Yes |
| Precision | High |
| Purity | Good |
Features
- Worldwide standard nebulizer for low-flow ICP-OES and ICP-MS applications
- Enhanced Efficiency: Although the MicroMist nebulizer operates at a lower sample flow rate, the transport efficiency is significantly higher compared to a standard concentric nebulizer.
- Reduced Interferences: The smaller droplet size of the MicroMist nebulizer has additional analytical advantages, including reduced matrix interferences and a more robust plasma.
- Tolerance to High Matrix: Although the MicroMist nebulizer is a low-flow nebulizer, it still provides a relatively high tolerance to total dissolved solids (TDS) at 15%. Providing the ability to handle a wide range of sample types, including challenging samples such as wastewater, soil, blood, serum, and urine. For the enhanced tolerance to TDS, consider adding an argon humidifier, such as our Elegra.

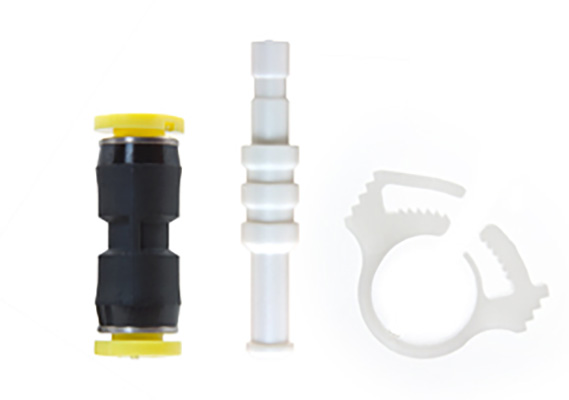

- Features the EzyLok argon connector: The inert, metal-free DC argon gas fittings, with built-in torque control, ensure reliable, reproducible, and leak-free connections, keeping analyses contaminant-free. Large, soft-walled tubing prevents kinks and fatigue common with rigid capillaries
